N95/N100/N150 Mini PC N6
- Brand: GreatAsia(Support Customization)
Product Type: Mini PC
CPU: Intel Alder Lake-N95/N100/N150/N97/N200/N300 optional
Graphics: Intel UHD Graphics
Memory: SODIMM DDR4 3200MHz, 8GB-16GB
Storage: M.2 SATA SSD 128GB-2TB
Display Output: Dual HDMI 2.0, max 4K 60Hz
USB: USB 3.24
Network: Gigabit LAN
Case Material: Plastic
Dimension: 124.5mm*111mm*33mm
Weight: 215g
Operating System: Windows 10/11 optional
additional information
product description

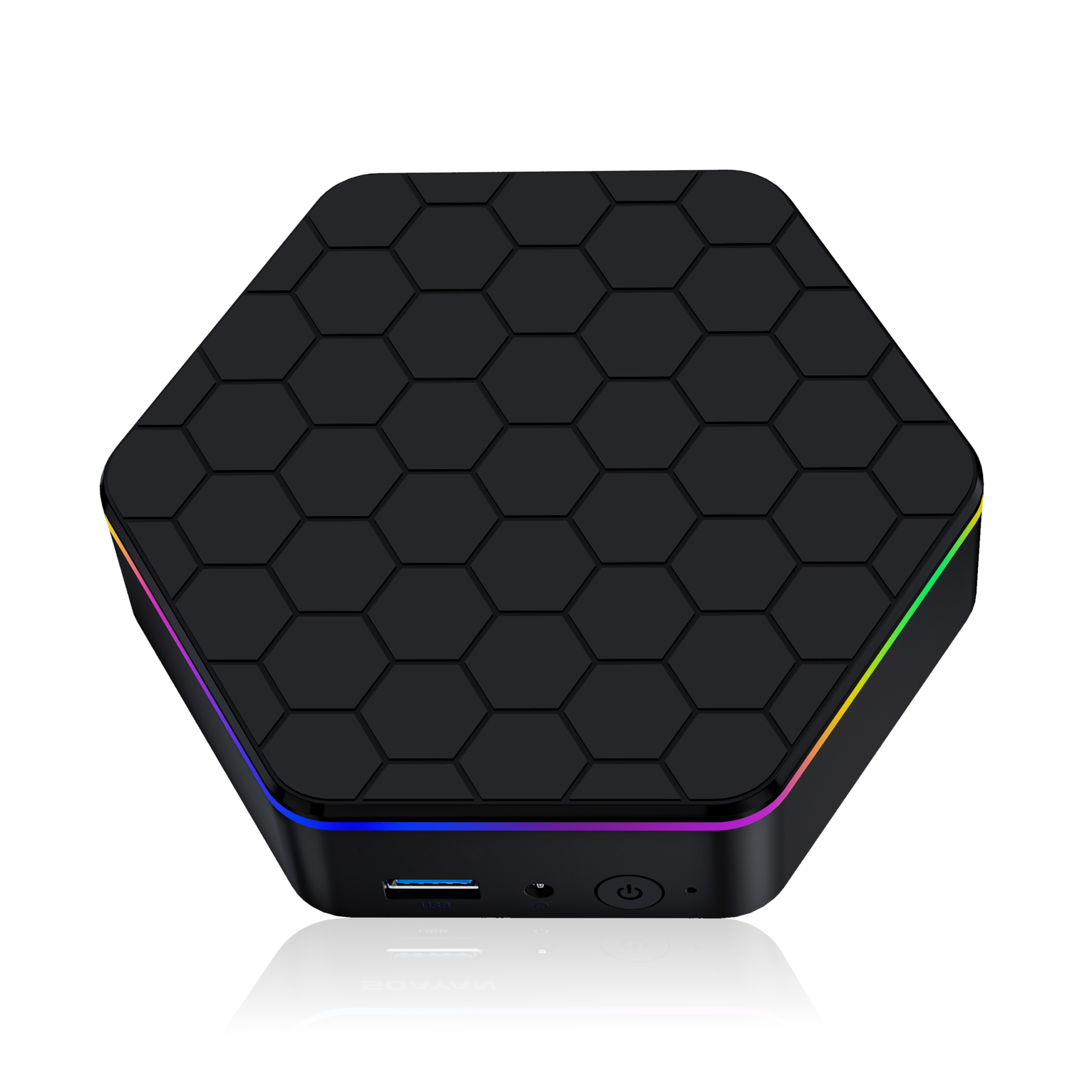

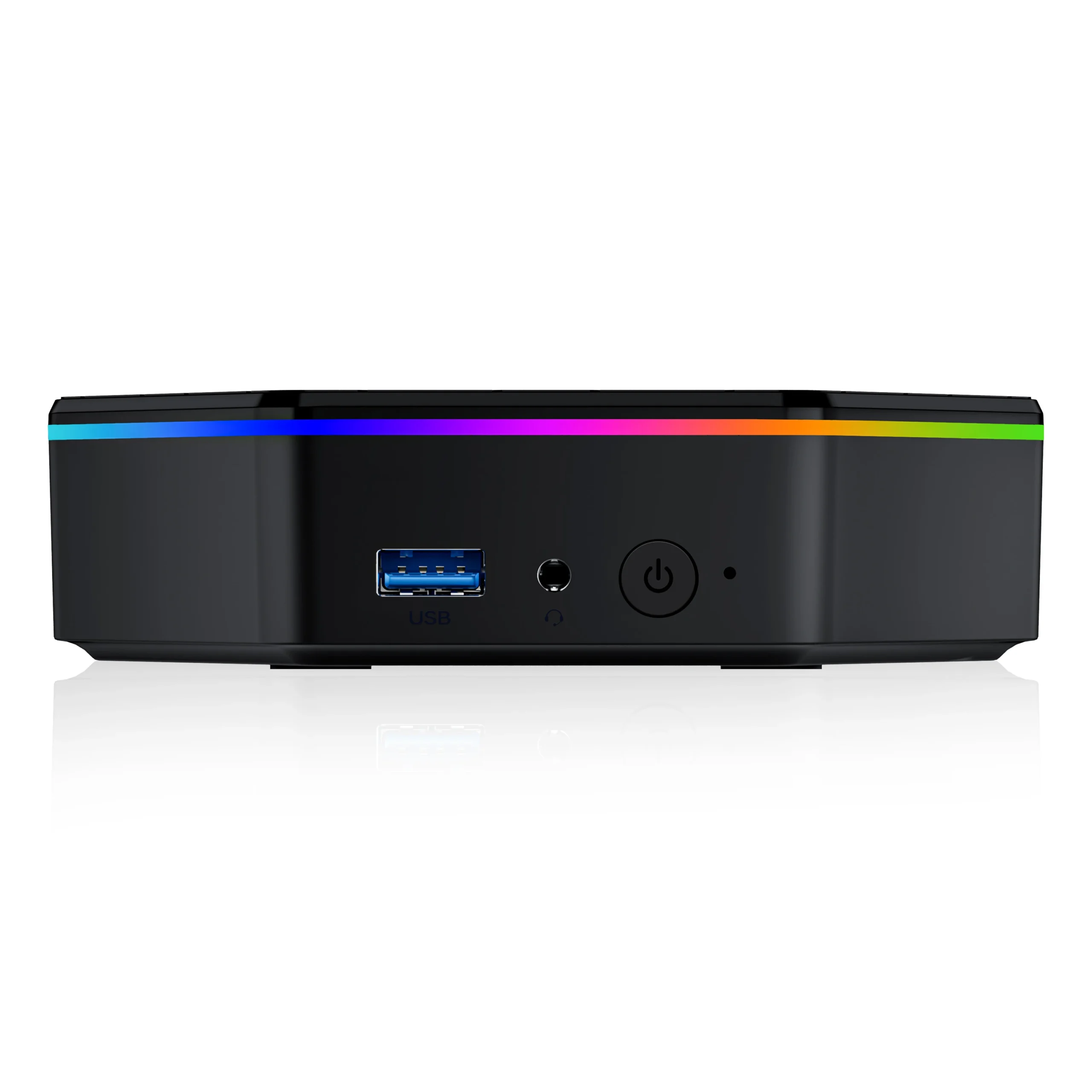

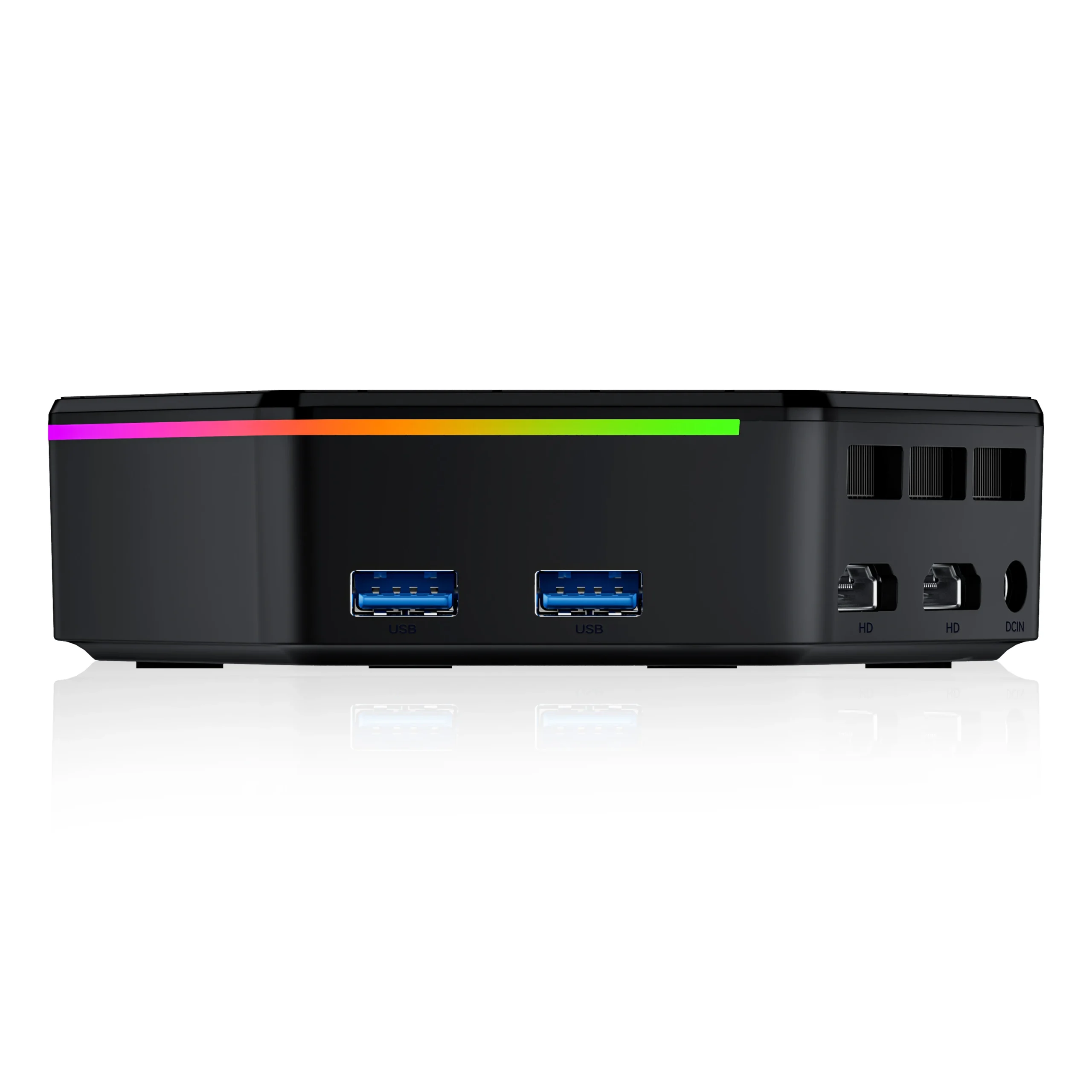

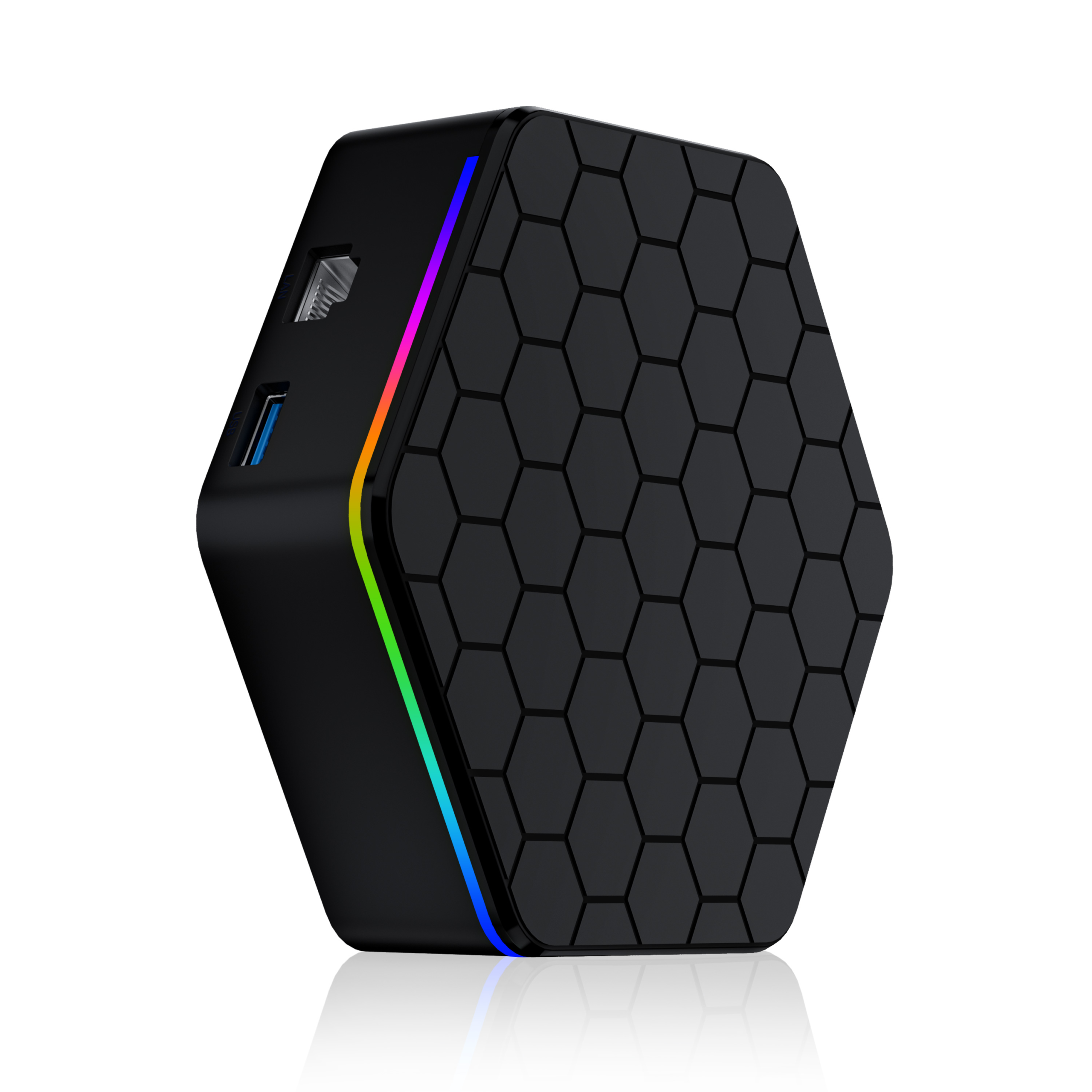

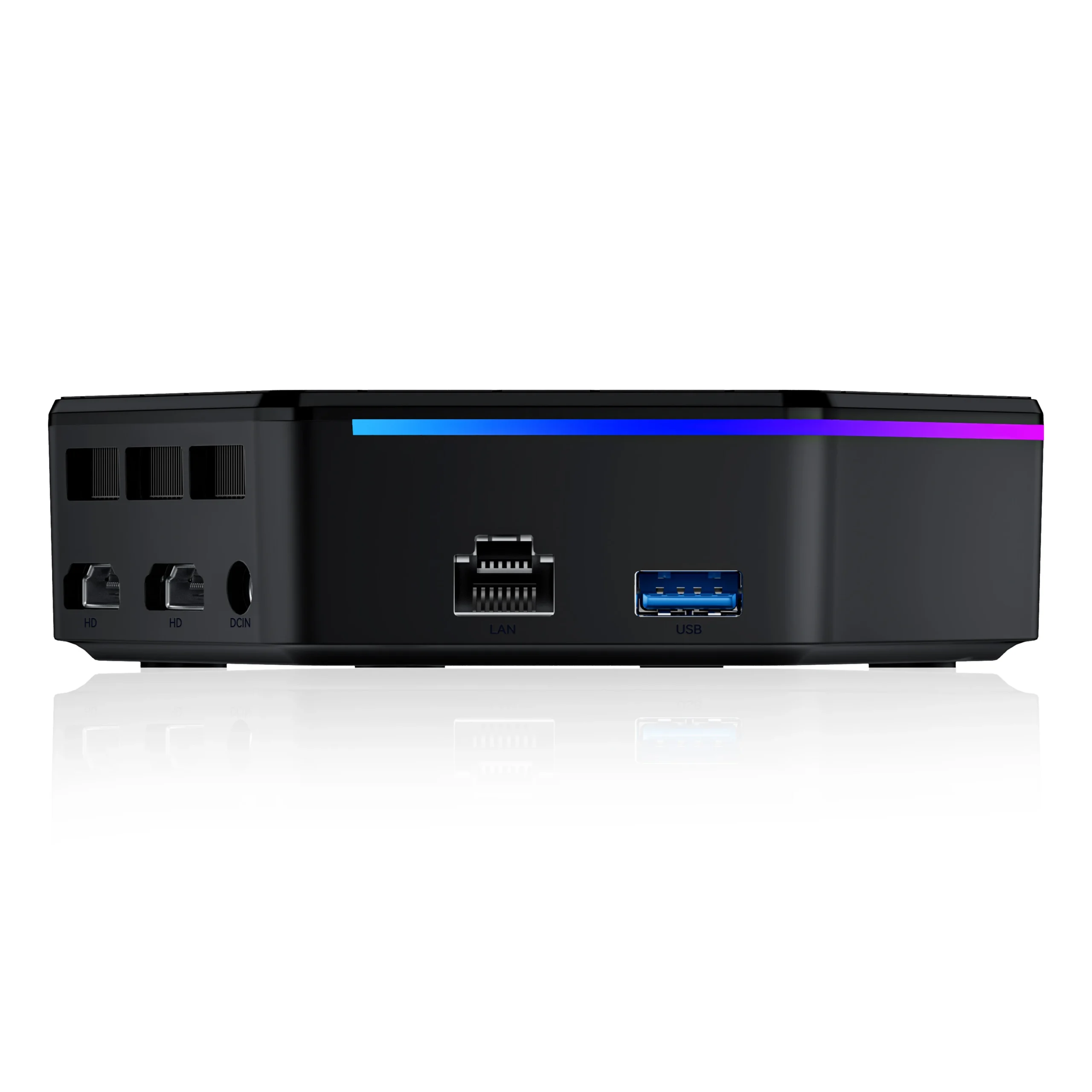

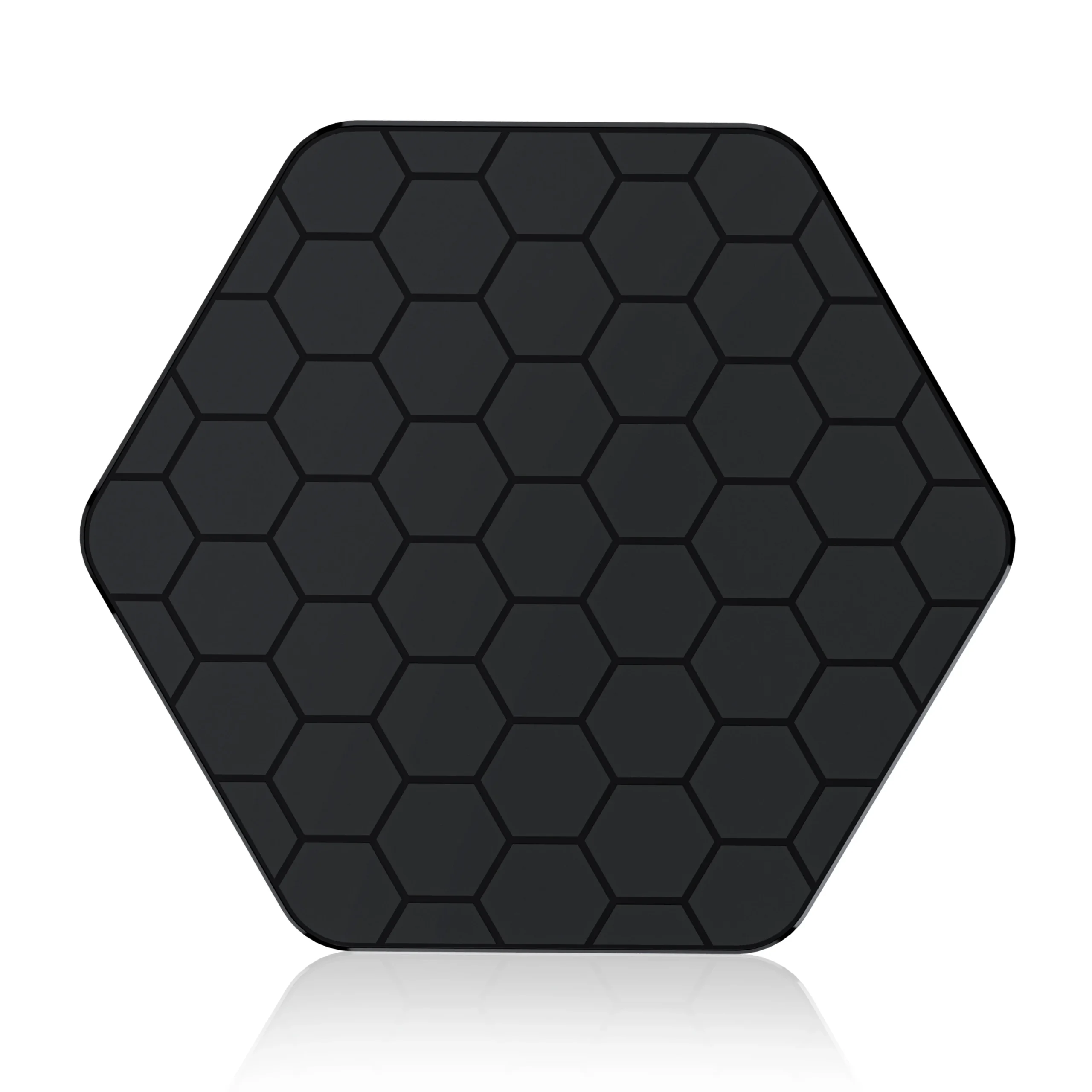

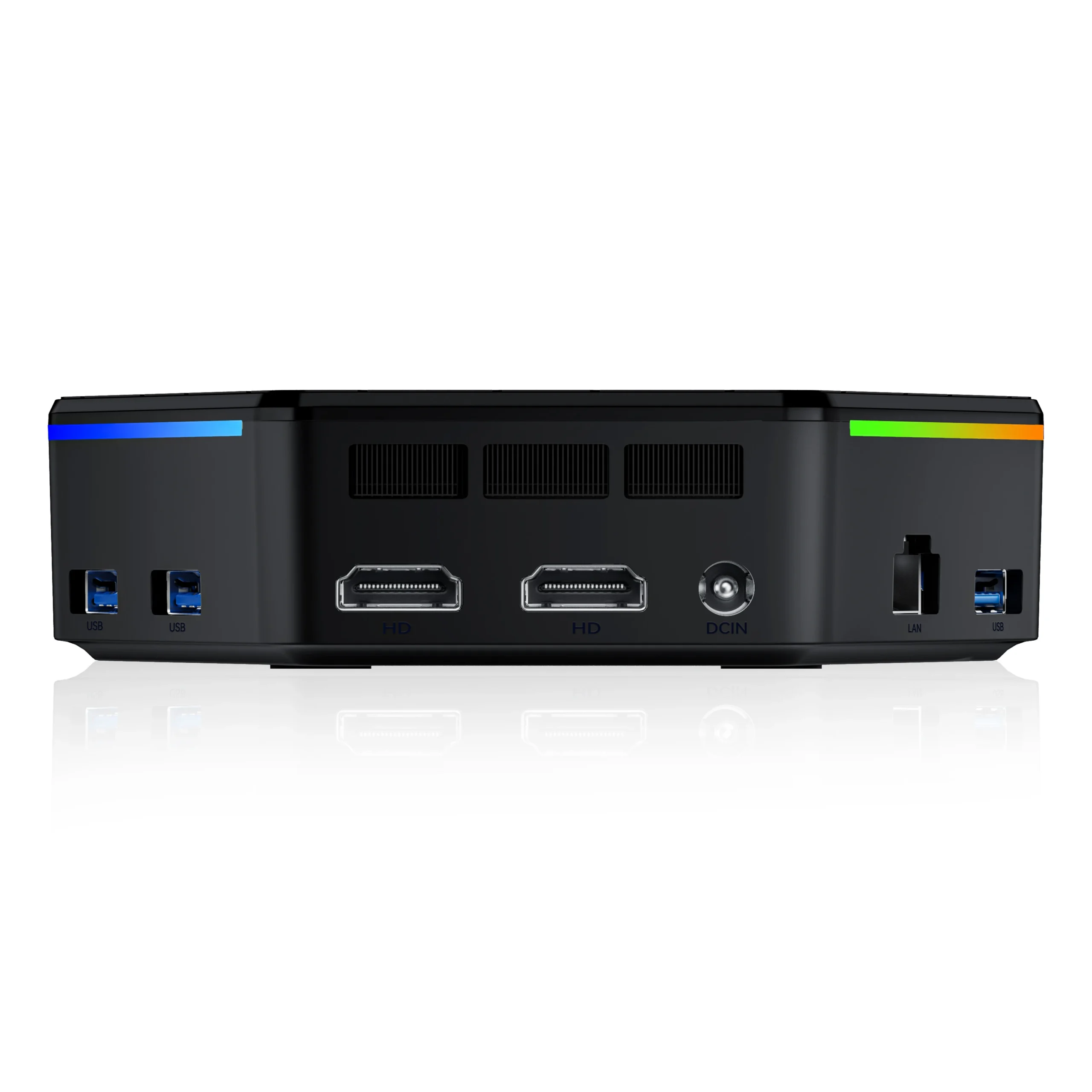

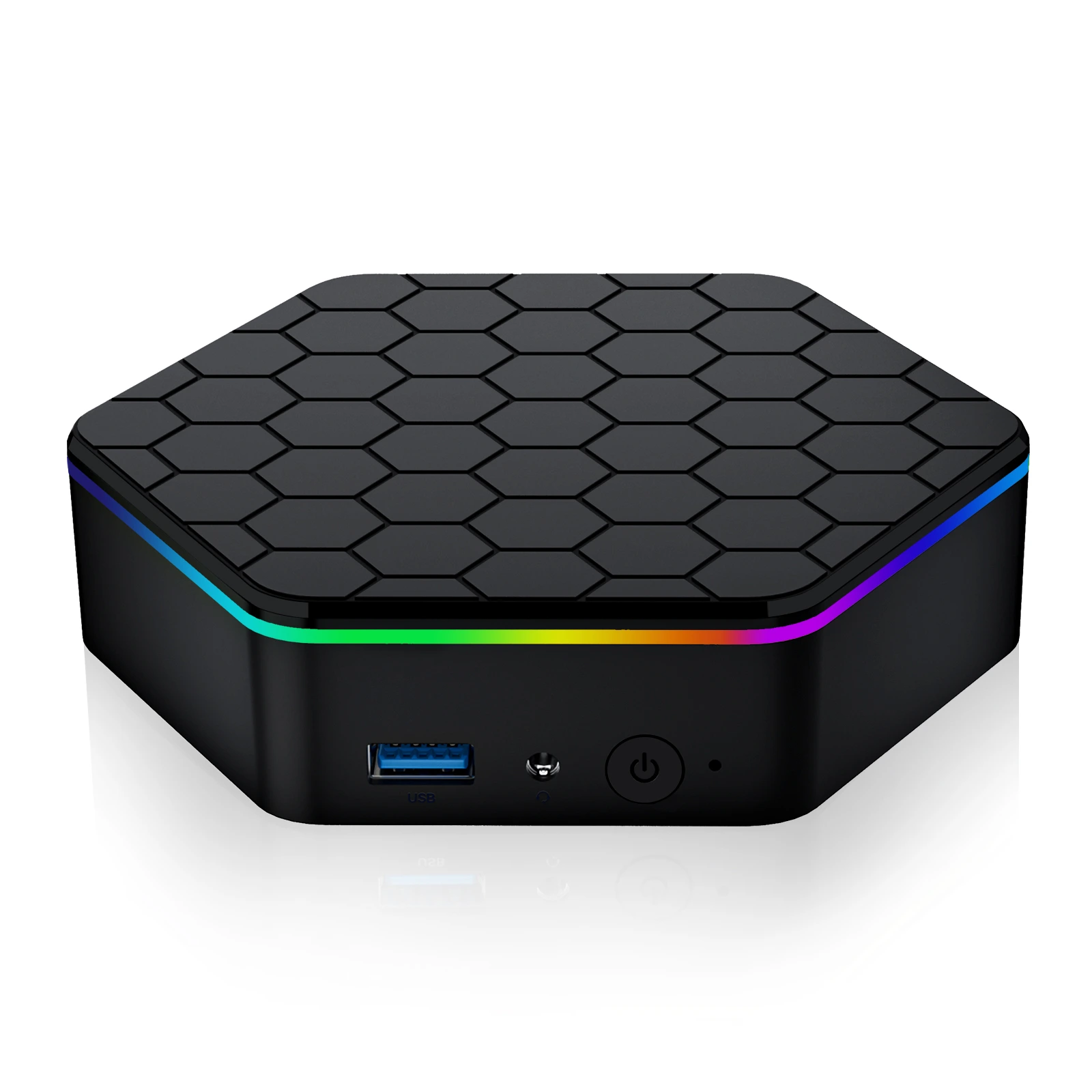

| Product Appearance | |||
| Type | Spec | Description | |
| Product | Product Type | Mini PC | |
| Dimension | 124.5mm*111mm*33mm | ||
| Case Material | Plastic | ||
| Weight | Net Weight 215g | ||
| System Hardware Configuration | |||
| Type | Spec | Description | |
| CPU | Model | Intel® Processor Alder Lake-N95/N100/N150 Max Turbo 3.4G Cache 6MB /// N97/N150 Max Turbo 3.6G Cache 6MB///N200 3.7G Cache 6MB ///N300 3.8G Cache 6MB |
|
| Graphics | Model | Intel® UHD Graphics | |
| Memory | Model | SODIMM DDR4 3200Mhz | |
| Capacity | Mini 8GB – Max 16GB | ||
| Storage | M.2 SSD SATA (2242) | M.2 SATA Mini 128GB – Max 2TB | |
| RTC | BIOS | Real-time Clock,Time Boot | |
| Auto Power On | BIOS | Support auto power on after electrified | |
| Wake On LAN | BIOS | Supported | |
| TPM | CPU | Support TPM 2.0 | |
| Peripheral interface | |||
| Type | Spec | Description | QTY |
| USB | USB3.2 | 10Gbps | 4 |
| HDMI | HDMI 2.0 | HDMI*2(Max 4K 60Hz) | 2 |
| RJ45 | Ethernet | Realtek RTL8111 1000M | 1 |
| Power | Power Button | LED State White light-Swith on | 1 |
| RTC | Button | CLR CMOS Button | 1 |
| Audio | Audio in&out | 3.5mm Phone Jack*1(Two-in-one)Realtek ALC897 | 1 |
| DC IN | Power Supply | 5.5*2.1 DC Jack*1 | 1 |
| Antenna | FPC Antenna | FPC Antenna1 | 1 |
| FPC Antenna2 | 1 | ||
| Environment | |||
| Type | Spec | Description | |
| Environment | Working Temperature | 0~40℃ | |
| Storage Temperature | -20~60℃ | ||
| Humidity | 90% @40℃ （No Condensation) | ||
| Package | |||
| Cartoon box packaging | 52*29.6*30.1 cm | Weight | 14kg |
| Gift Box packaging | 14.2*14.2*10.2 cm | Weight | 0.66kg |
