i3/i5/R5/R7 Mini PC MQ
- Brand: GreatAsia(Support Customization)
- Product Type: MQi12 Mini PC
- CPU: Intel i3-1215U/i5-1235U/i5-13420H or AMD R5-6600H/R7-8745HS
- Memory: LPDDR4/LPDDR5 or dual SO-DIMM DDR5, up to 64GB
- Storage: M.2 2280 NVMe PCIe + M.2 2242 NVMe PCIe SSD, up to 2TB
- Display Output: HDMI*2 + Type-C
- Network: 2.5G Ethernet
- Dimension: 115*115*50 mm
- Operating System: Windows 10/11 optional
additional information
product description

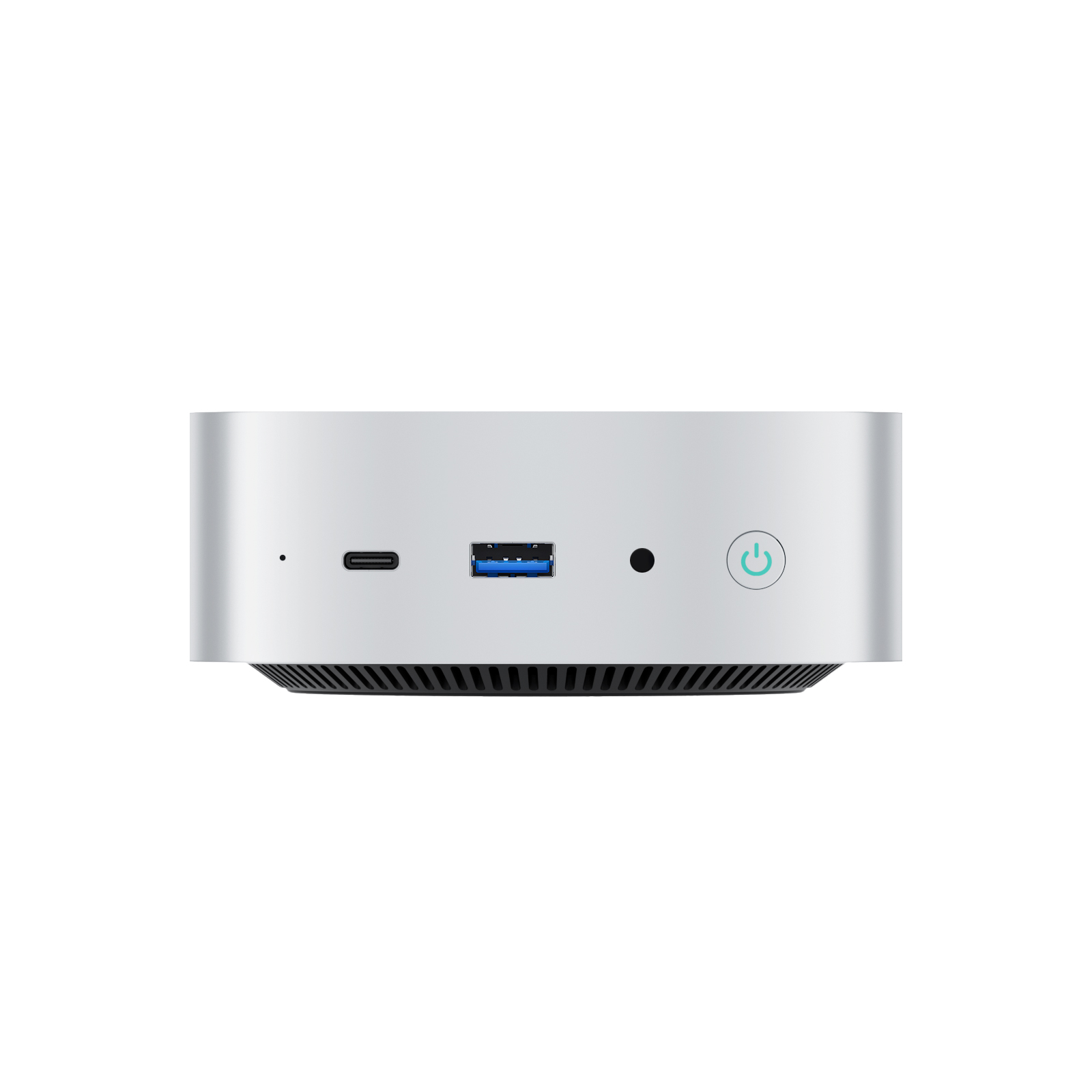

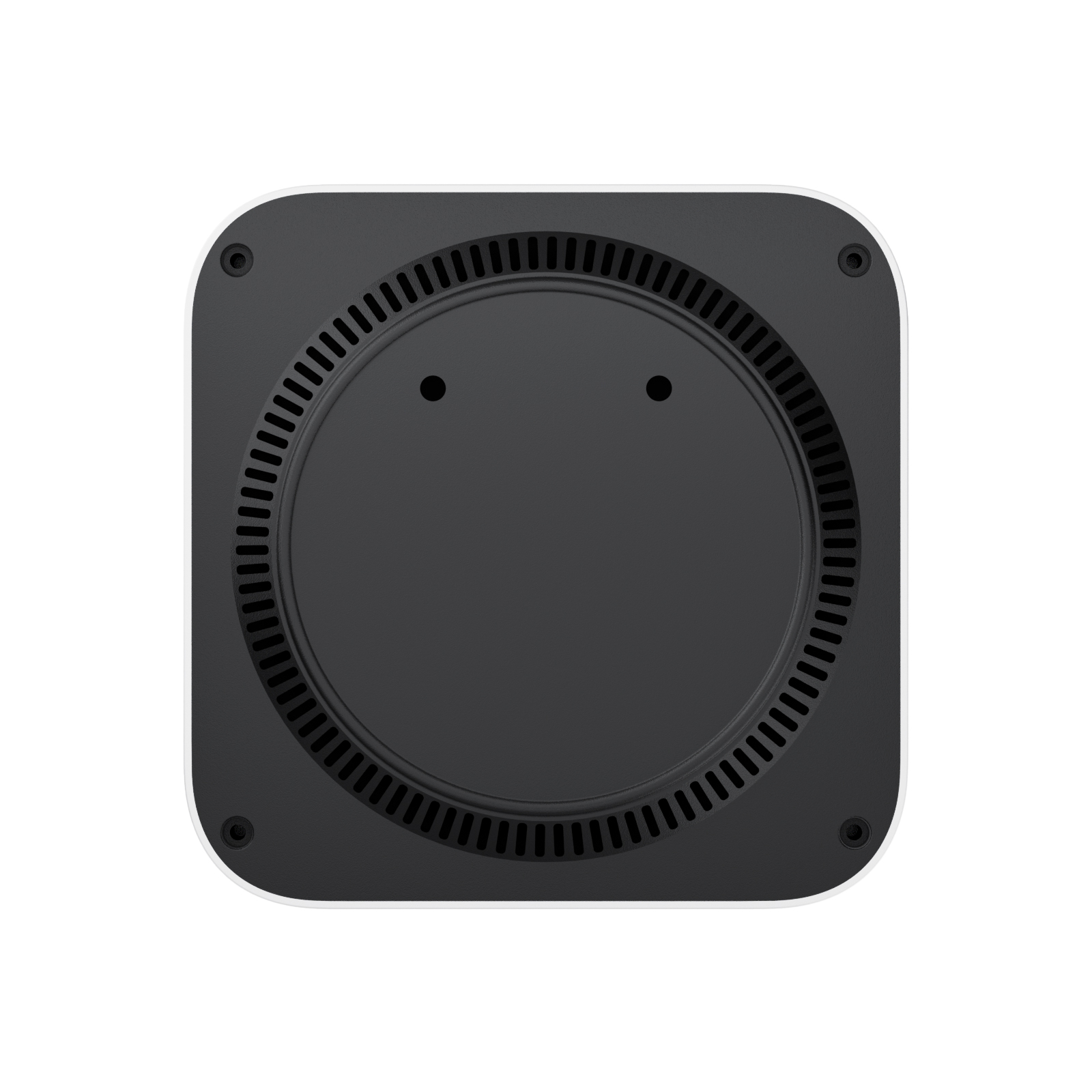

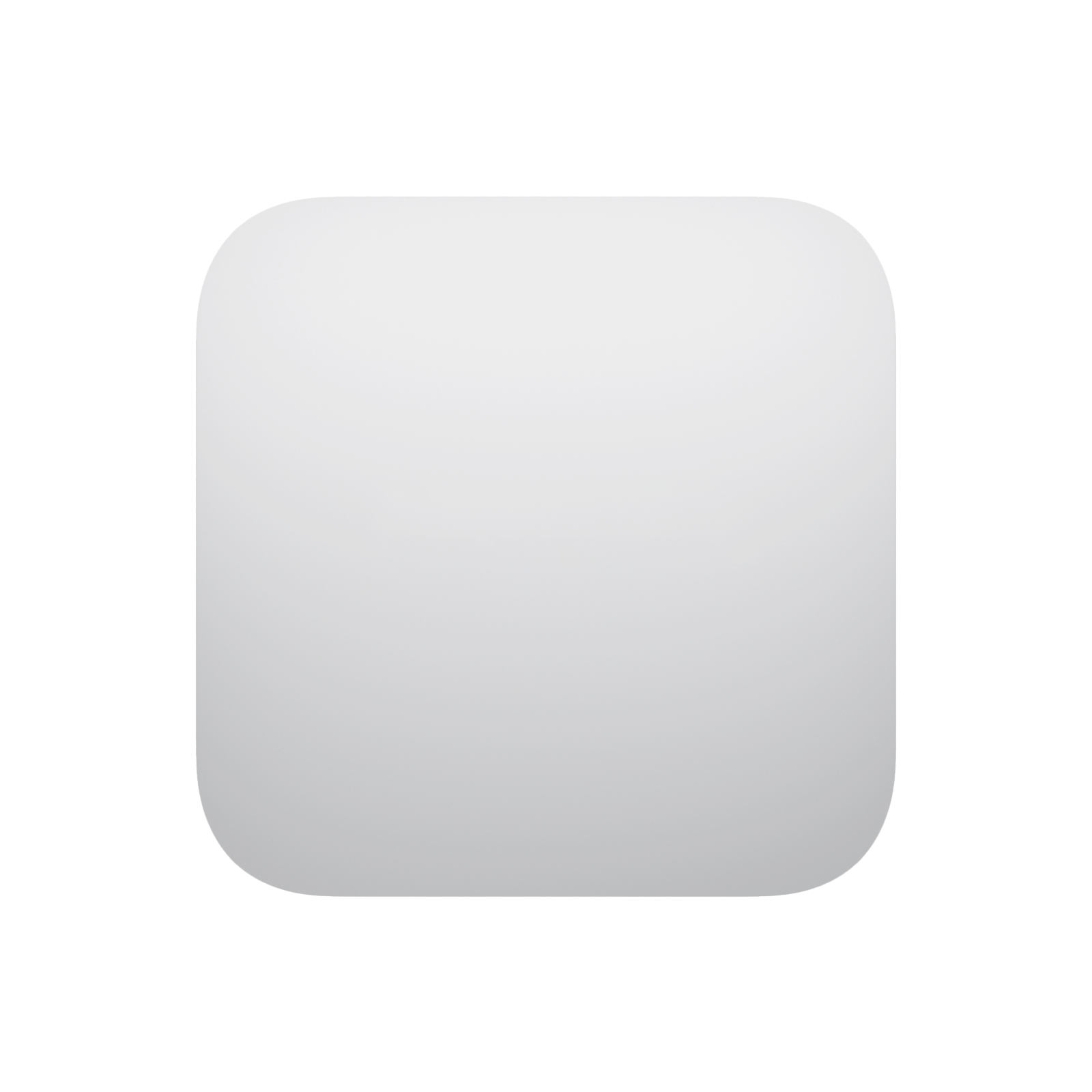

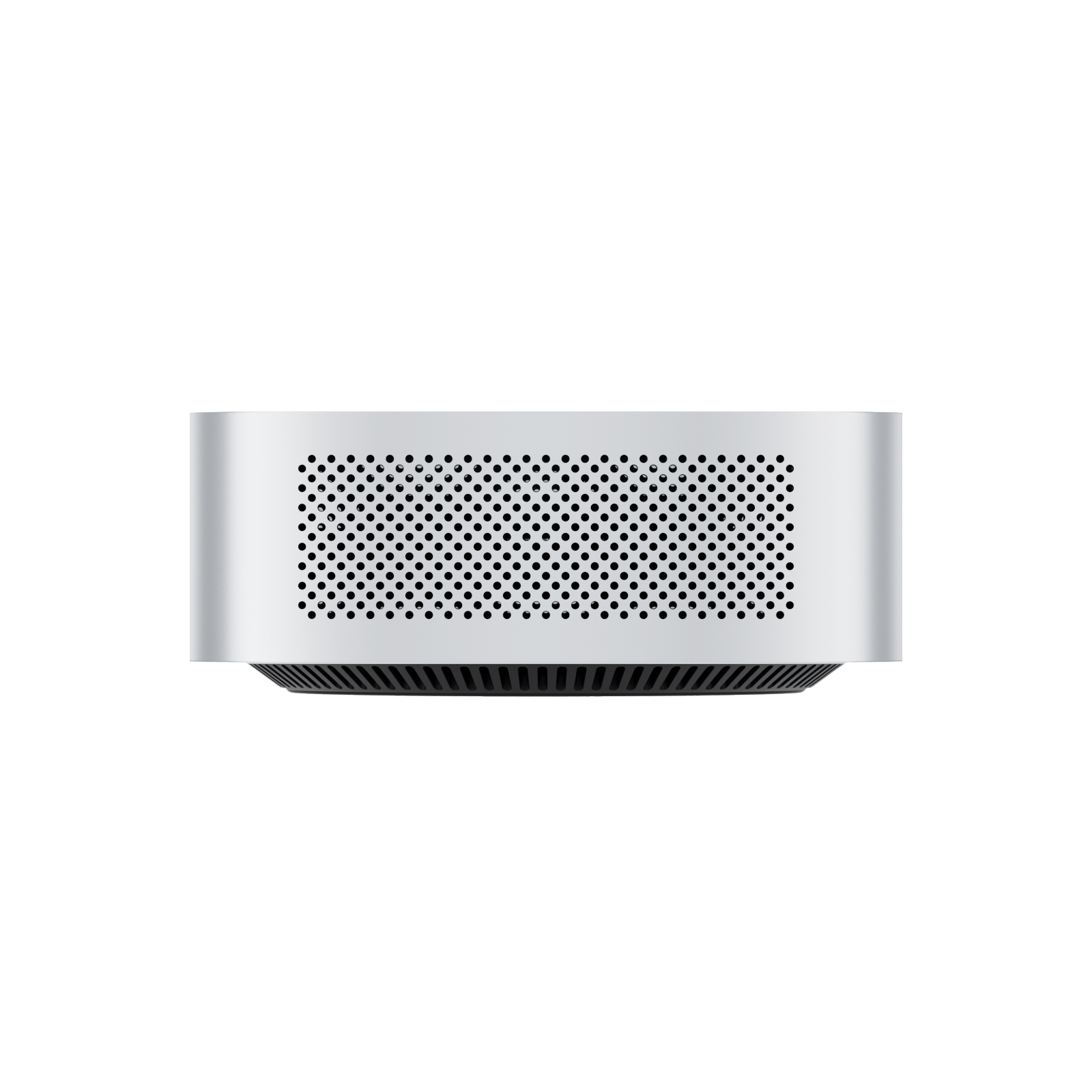

| Product Appearance | ||||||
| Type | Spec. | Standard Configuration | ||||
| Product | Product Type | MQi12 | ||||
| Dimension | 115*115*50 mm | |||||
| Case Material | PC+ABS | |||||
| Weight | 800g | |||||
| System Hardware Configuration ( INTEL Alder Lake ) | AMD Rembrandt | |||||
| Type | Spec. | i3 | i5 | i5 | R5 | R7 |
| CPU | Model | 1215U | 1235U | 13420H | 6600H | 8745hs |
| manufacturing process | INTEL7 | INTEL7 | INTEL7 | TSMC 6nm FinFET | TSMC 4nm FinFET | |
| core | 6 cores and 8 threads | 10 cores and 12 threads | 8 cores and 12 threads | 6 cores and 12 threads | 8 cores and 16 threads | |
| cache | Cache:10MB | Cache:12MB | Cache:12MB | Cache:16MB | Cache:16MB | |
| Maximum speed | 4.40 GHz | 4.40 GHz | 4.60 GHz | 4.5 GHz | 4.9 GHz | |
| power （TDP） | 15W | 15W | 45W | 45W | 45W | |
| GPU | Model | Intel® UHD Graphics for 12th Gen Intel® Processors | Intel® Iris® Xe Graphics eligible | Intel® UHD Graphics for 13th Gen Intel® Processors | AMD Radeon™ 660M | AMD Radeon™ 780M |
| Execution Units | 64 | 80 | 48 | 6 | 12 | |
| Graphics Max Dynamic Frequency | 1.10 GHz | 1.20 GHz | 1.40 GHz | 1.9 GHz | 2.6GHz | |
| resolution | HDMI:4096 x 2304 @ 60Hz / DP:7680 x 4320 @ 60Hz | HDMI:4096 x 2304 @ 60Hz / DP:7680 x 4320 @ 60Hz | HDMI:4096 x 2304 @ 60Hz / DP:7680 x 4320 @ 60Hz | 3840×2160 @ 60Hz , 3440×1440 @ 144Hz , 2560×1440 @ 180Hz , 1920×1080 @ 240Hz | 7680×4320 @ 60Hz , 3840×2160 @ 240Hz , 3440×1440 @ 360Hz , 2560×1440 @ 480Hz , 1920×1080 @ 600Hz | |
| Memory | Model | LPDDR4 | LPDDR5-6400MT/s | SO-DIMM DDR5 x 2 | ||
| speed | LDDR4X 4267MT/s | LPDDR5-6400MT/s | DDR5 5600 MT/s | |||
| Capacity | Up to 64GB | Up to 256G | ||||
| Storage | SSD Capacity | SSD(Up to 2TB) | ||||
| SSD Type | M.2 2280 NVME PCIE *1+2242 NVME PCIE*1 | |||||
| RTC | BIOS Support | Real-time clock, timed power-up | ||||
| power-on | BIOS Support | Supports automatic boot after power-on | ||||
| diskless network | BIOS Support | Support uefi diskless boot | ||||
| TPM | CPU Integrated TPM | Supports TPM 2.0(integrated in CPU) | ||||
| multi-screen | video output | HDMI*2+TYPEC*1 | ||||
| LED | status indicator | LED | ||||
| Internet Connection | ||||||
| Type | Spec. | Standard Configuration | ||||
| WIFI | Model | M.2 E_Key | ||||
| protocols | IEEE 802.11 a, b/g, n, ac，ax (wifi 6) | |||||
| Bluetooth | Model | M.2 E_Key | ||||
| protocols | Support Bluetooth 5.2 | |||||
| Ethernet | LAN1 | 10M/100M/1000M/2.5G Adaptive | ||||

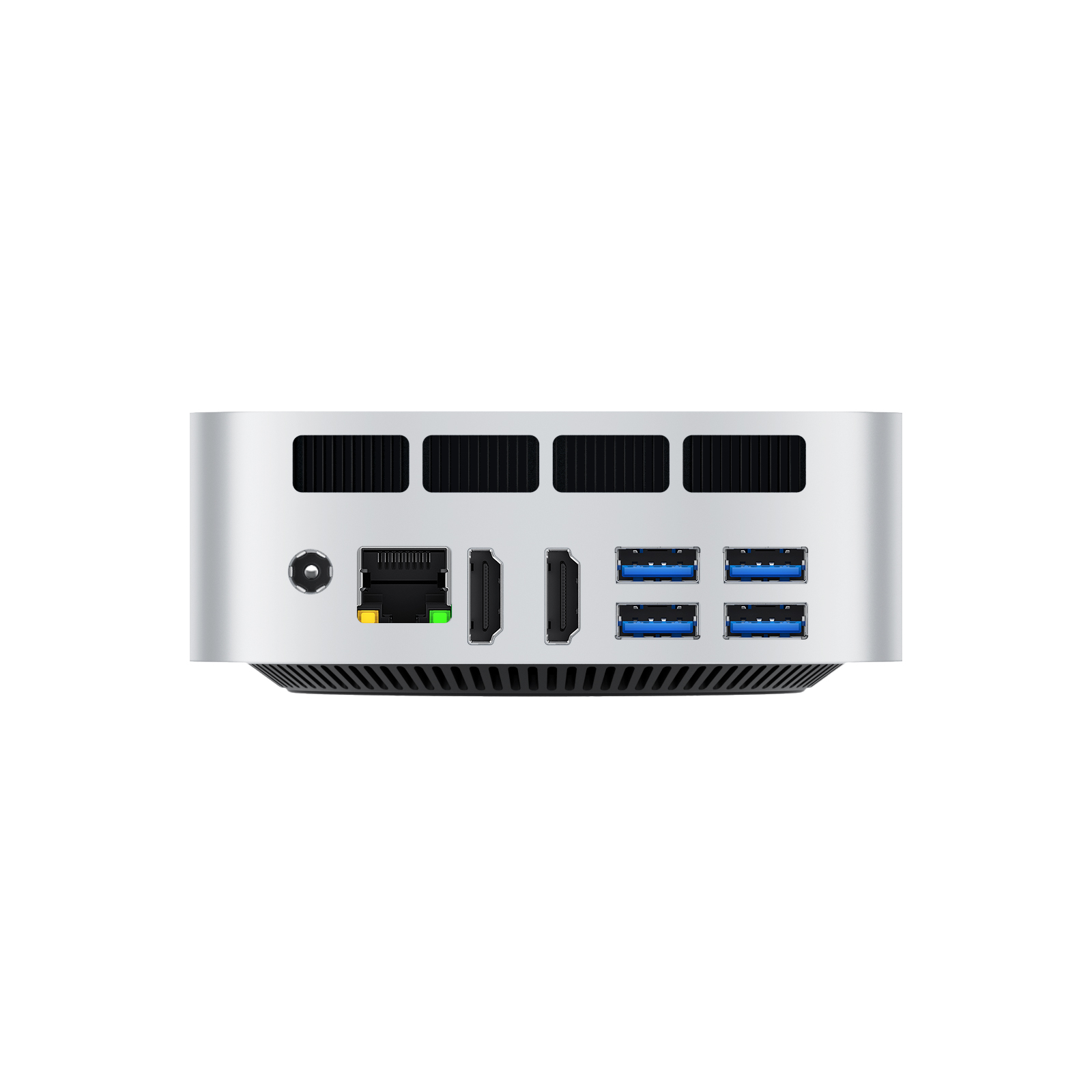

| interface | ||||||
| Type | Spec. | Standard Configuration | ||||
| USB | USB3.2 | USB3.2Type-A*5 | ||||
| HDMI | video output | HDMI 2.1*2 | ||||
| RJ45 | 2.5G Ethernet | 10/100/1000M/2.5G*1 | ||||
| Type C | USB C | TYPEC*1 Data: 10Gbps/Display(4K 60Hz) | ||||
| DC IN | Power Supply Input | DC Jack *1 5.5/2.5mm | ||||
| Audio | Audio-in/out | 3.5mm Phone Jack*1（Audio Jack） | ||||
| Antenna | FPC Antenna 1 | WiFi 2.4+5G+BT *1 | ||||
| FPC Antenna 2 | WIFI 6.0 | |||||
| Software Configuration | ||||||
| Type | Spec. | Standard Configuration | ||||
| OS | Version | Win11/Linux | ||||
| Environment | ||||||
| Type | Spec. | Standard Configuration | ||||
| Environment | Working Temperature | 0~45℃ | ||||
| Memory Temperature | -20~70℃ | |||||
| Humidity | 5%-95% @ 40 °C (no condensation) | |||||
| ΔT | MAX: 23 °C | |||||
| Accessory | ||||||
| Type | Spec. | Standard Configuration | ||||
| Power Supply | Desktop/Plug-in | Input 100~240V 50/60Hz Output 19V/3.78A DC Header 5.5*2.5mm | ||||
