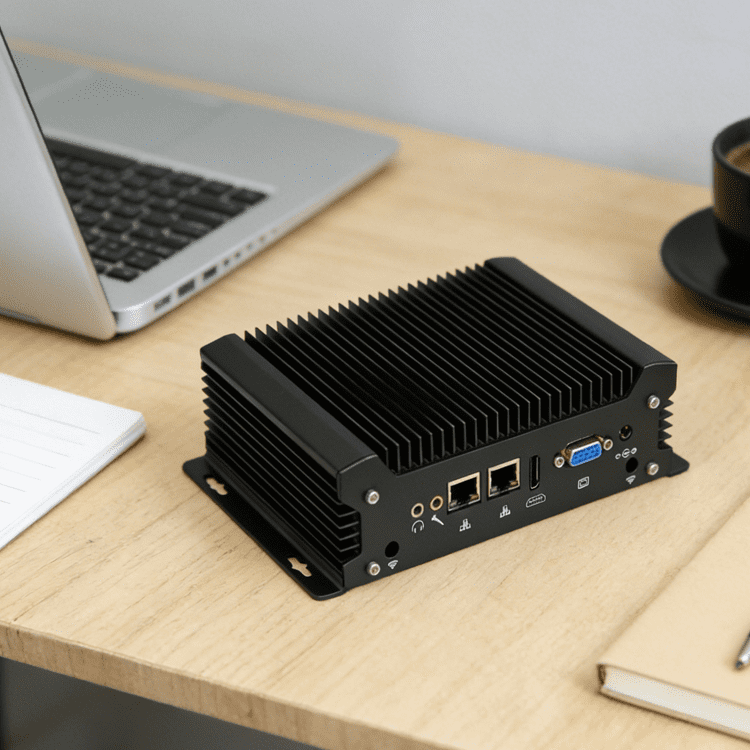

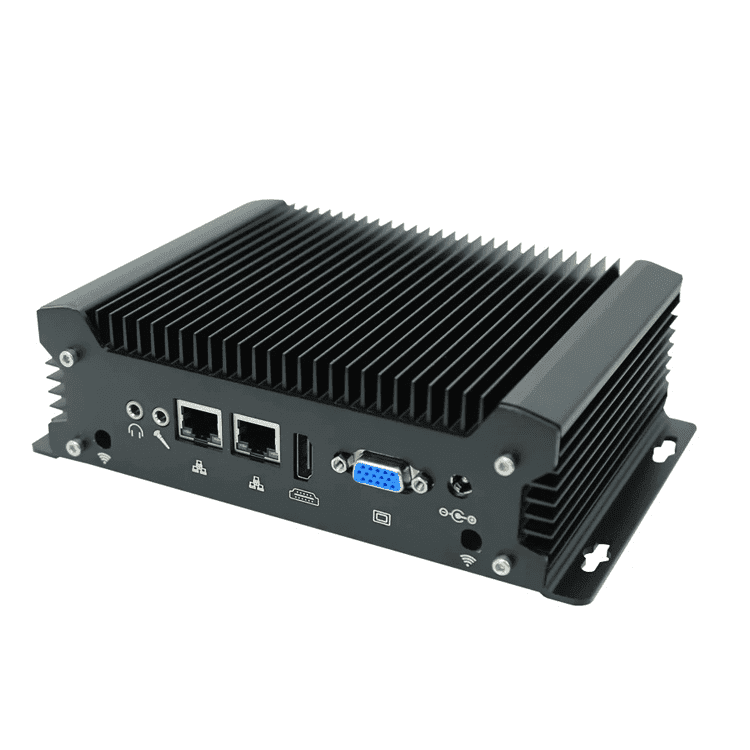

I3-10110U Mini PC TK-M110
- Brand: GreatAsia(Support Customization)
- High-Performance Intel Core Tiers: Supports Intel Core i3-10110U, i5-1135G7, and i7-10610U (up to 4.9GHz) for powerful industrial and commercial multitasking.
- Dual-Channel Memory & Storage: Features 2*SODIMM DDR4-2666 slots and dual-storage architecture (M.2 NVMe + SATA HDD) for maximum speed and capacity.
- Industrial Aluminum Chassis: Precision-tooled full aluminium alloy case provides high durability, superior heat dissipation, and electromagnetic interference protection.
- Dual Gigabit LAN Support: Dual RTL8111 RJ45 ports ensure high-speed, reliable wired networking and network redundancy for server applications.
- Comprehensive I/O Array: Equipped with HDMI 1.4, VGA, 2COM, 8USB ports, and an MPCIE slot for flexible serial communication and 4G LTE/WiFi expansion.
- Stable Wireless Networking: Built-in WiFi 5 and Bluetooth 4.0 modules facilitate high-speed cable-free connectivity and easy peripheral pairing.
additional information
product description
| Model | TK-M110 | ||
| CPU | i3 10110U | i5 1135G7 | i7 10610U |
| Base Frequency of CPU (GHz) | 2.1GHz | 2.4GHz | 1.8GHz |
| Maximum Frequency of CPU (GHz) | 4.1GHz | 4.2GHz | 4.9GHz |
| Number of CPU Cores | 2 | 4 | 4 |
| Number of CPU Threads | 4 | 8 | 8 |
| GPU | Integrated Intel® HD graphics | ||
| RAM | 2*SODIMM DDR4-2666 4GB | ||
| SSD | 1*M.2 NVMe; 1*SATA HDD slot | ||
| TOOLING | Full aluminium alloy case | ||
| Wireless LAN/BT | WIFI5/Bluetooth 4.0 | ||
| Network | 2*RJ45 RTL8111 Gigabit interfac | ||

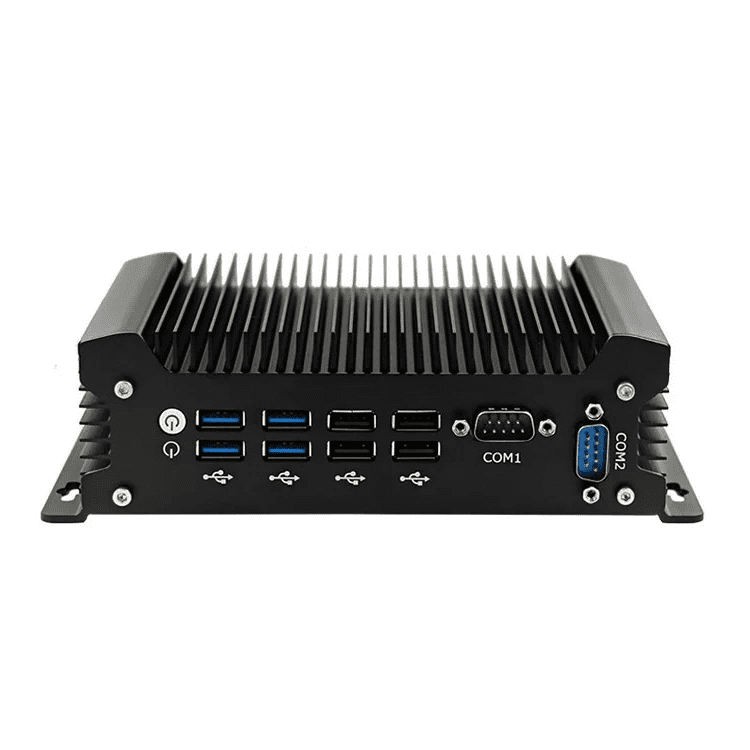

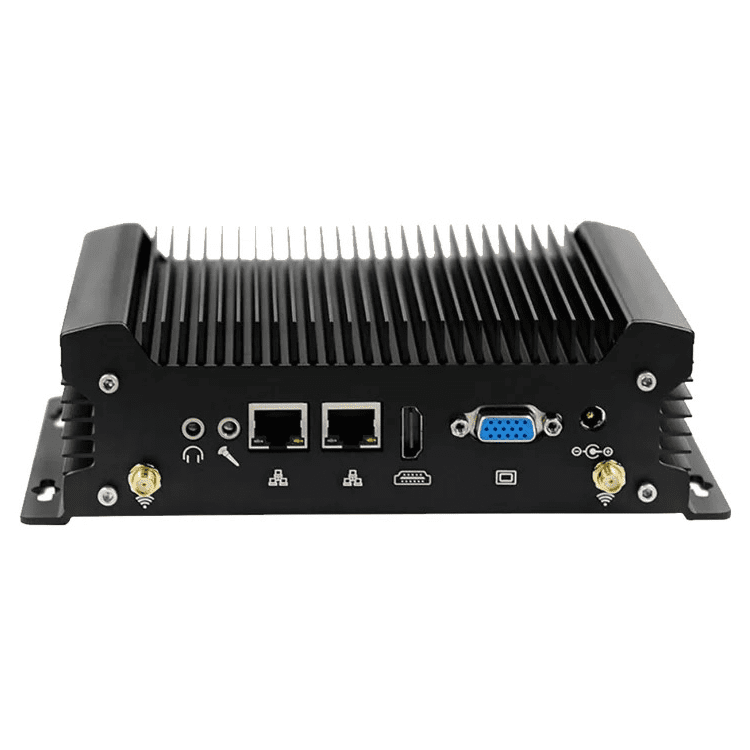

| I/O Ports | 1*VGA,1*HDMI 1.4, 2*LAN RJ45,2*COM, 4*USB2.0, 4*USB3.0 | ||
| 1*Audio, 1*Microphone | |||
| Expansion:1*MPCIE support WiFi or 4G LTE (SIM card interface) | |||
| Camera | NO | ||
| Speaker | NO | ||
| Battery | NO | ||
| Ac Adaptor | DC 5.5 12V5A~19v 3.4A | ||
| OS | Windows 10/11/Linux | ||
| Weight | 1.1Kg | ||
| Dimension | 195*127*57mm | ||
| Cooling system | Copper heatsink | ||
| Input | 100-240V 50/60Hz | ||
| Output | 19V 5A/6.3A | ||
| Cooling system | Built-in fan | ||
| Other Function Features | large screen display |
